A 70-Acre Fabrication Yard on the Water
Why the Water Changes What Can Be Built

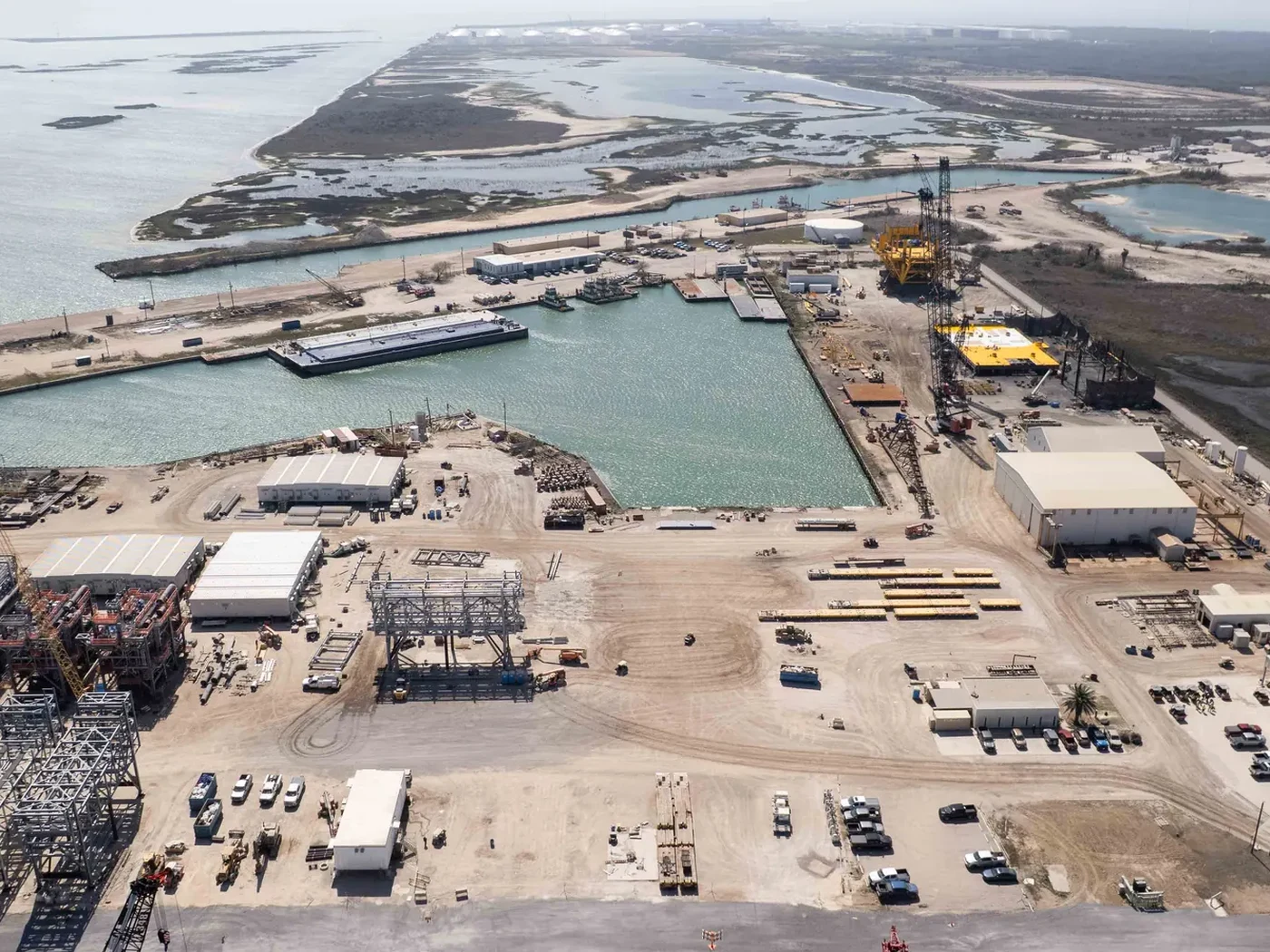

State Service Company operates a 70-acre fabrication facility at 919 Bishop Road, Ingleside, Texas, directly on the Gulf Intracoastal Waterway. The yard carries 2,000 linear feet of load-bearing steel bulkhead, so completed modules load out onto a barge without leaving the property. The Gulf of Mexico is 12 miles away with no vertical restrictions.
70 Acres
45 acres of uncovered fabrication yard on the water.

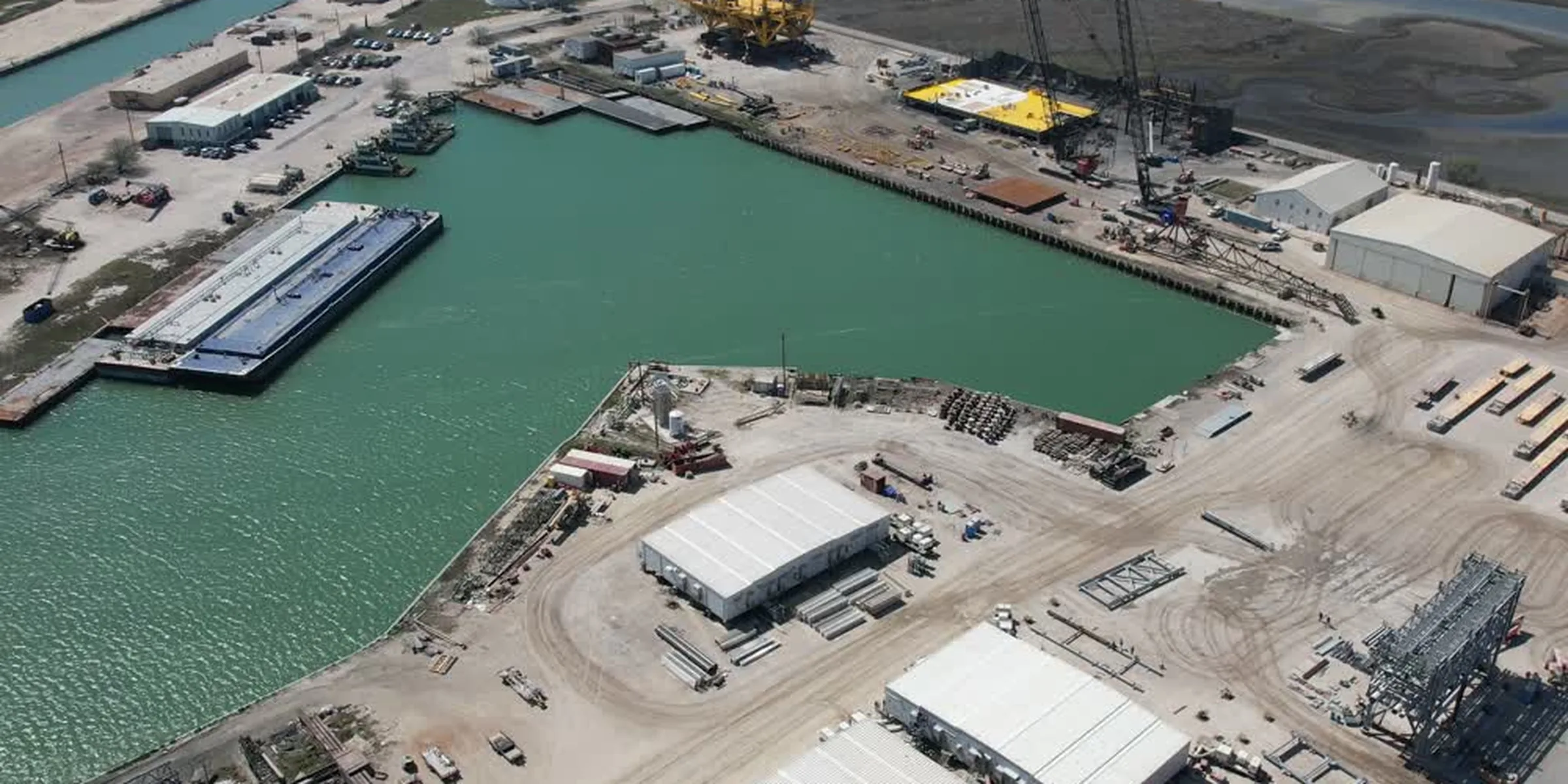

2,000 ft Bulkhead
Load-bearing steel bulkhead for direct barge load-out.
12 Miles to the Gulf
No vertical restrictions between the yard and open water.
1,300 On Site
Work performed here never mobilizes to your project.
Full Traceability
Heat number tracked from receipt through load-out.
3 Hours From Houston
FM 361 access, Aransas Pass airport 3 miles away.
Size Stops Being a Transport Problem
Road transport sets a ceiling on module size. Every overpass, intersection and state permit limits how tall and how wide a unit can be, and a module built past those limits has to be split into sections that get rejoined in the field.
A module built at the bulkhead does not have that constraint. It ships at full assembled height, in one piece, tested. Modules built larger than the Intracoastal Waterway itself can carry transit offshore in open water instead.
That single fact drives most of what State Service can offer: single-piece electrical buildings, multi-level process modules, complete platform topsides and pipe racks with the piping already welded into continuous, hydrotested systems.
Facility Specifications
| Specification | Value |
|---|---|
| Total facility | 70 acres |
| Uncovered fabrication yard | 45 acres |
| Steel bulkhead | 2,000 linear feet, load-bearing |
| Bulkhead elevation | 8 to 10 ft above mean low water |
| Barge envelope | 125 ft x 400 ft x 22 ft |
| Minimum access water depth | 16 ft |
| Covered fabrication area | 25,000 sq ft |
| Covered storage area | 9,250 sq ft |
| Piping fabrication shop | 10,000 sq ft |
| Fabrication shop cranes | 5 overhead cranes, 60-ton total lift capacity |
| Shop vertical clearance | 25 ft |
| Fabrication bays | Two 60 ft bays |
| Piping shop stations | 6 stations, GMAW, GTAW and FCAW as required |
Access
| Route | Detail |
|---|---|
| Water | Gulf of Mexico 12 miles via the Intracoastal Waterway and Corpus Christi Ship Channel to Port Aransas and Harbor Island. No vertical restrictions. 16 ft minimum water depth |
| Highway | FM 361 |
| Air | Aransas Pass Municipal Airport, 3 miles from the facility |
| Houston | Approximately three hours by road |
Third party radiographic and ultrasonic inspection is available locally. Air conditioned office space is available on site as needed.
What Runs in the Yard
The facility supports roughly 1,300 people working on site. On a single large pipe rack module package, one module section alone carried around 800 people.
That is the number worth holding onto. A facility of comparable scope built conventionally carries six to eight thousand people at the project location. Work performed in Ingleside is work that never mobilizes to the client site, never competes for space in a congested or operating plant, and never appears on the site safety exposure count.
Traceability from receipt to load-out
Every piece of steel entering the yard is tracked to the piece that leaves it. Material carries its heat number through fabrication, and project identification is marked on the steel itself. That system is called Smart Steel.
See it in person
The yard is open to clients, engineers and project teams. Schedule a yard tour.
Frequently Asked Questions
How large a module can load out from the yard?
Size is governed by the barge envelope of 125 ft by 400 ft by 22 ft rather than by road limits. Modules exceeding what the Intracoastal Waterway can carry transit offshore in open water.
How far is the yard from the Gulf of Mexico?
Twelve miles, by way of the Intracoastal Waterway and the Corpus Christi Ship Channel to Port Aransas and Harbor Island, with no vertical restrictions and 16 ft minimum water depth.
How far is the yard from Houston?
Approximately three hours by road. The nearest airport is Aransas Pass Municipal Airport, 3 miles away.
Can I visit the facility?
Yes. State Service hosts client and project team tours of the yard.
Let's build your next project together.
